Adjustable Hand Levers

4010,4020,4030,4031,4040,4050,4051,4060,4061,4070

Unit prices depend on the specifications required.

4060 ST.Steel Adjustable Hand Levers

Adjustable Handles / ST. Steel Adjustable Hand Levers

4060 ST. Steel Hand Levers

Product Specification

Name	Material	Surfaced process
Handle	Zinc die casting (ZD)	Painted black (BK) Painted orange (OR) Painted silver (SR)
Spindle	Stainless Steel (SST)

(mm)

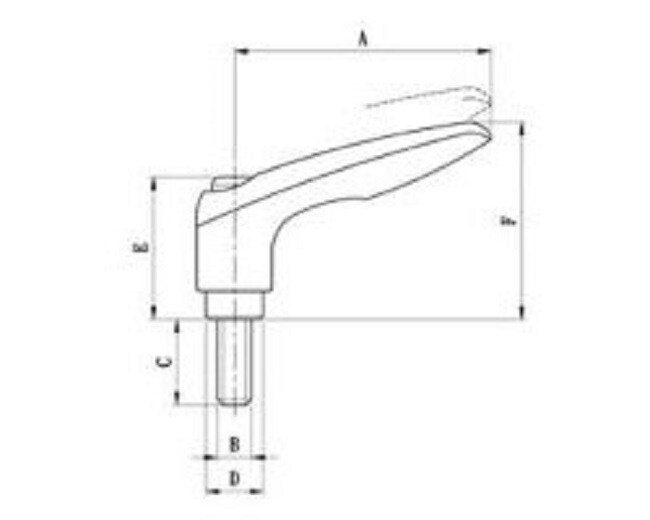

Order No. (ZD)	A	B	C										D	E	F
4060-A-B-C-Surfaced color A(Handle length) B(Internal thread) C(Thread length)	40	M5	10	15	20	25	30	-	-	-	-	-	10	24.5	35
	40	M6	10	-	20	-	30	40	50	-	-	-	10	24.5	35
	45	M5	10	15	20	25	30	-	-	-	-	-	10	24.5	35
	45	M6	10	-	20	-	30	40	50	-	-	-	10	24.5	35
	63	M6	10	-	20	-	30	40	50	-	-	-	13.5	31	45
	63	M8	10	-	20	-	30	40	50	-	-	-	13.5	31	45
	78	M8	10	-	20	-	30	40	50	-	-	-	16	36	55
	78	M10	10	-	20	-	30	40	50	-	-	-	16	36	55
	92	M10	-	-	20	-	30	40	50	60	-	-	19	43	65
	92	M12	-	-	20	-	30	40	50	60	-	-	19	43	65
	108	M12	-	-	-	-	30	40	50	60	70	-	23	50.5	76
	108	M16	-	-	-	-	-	40	50	60	70	80	23	50.5	76
